Lattice Semiconductor LCMXO3D-PFR-EVN Sentry Demo Board

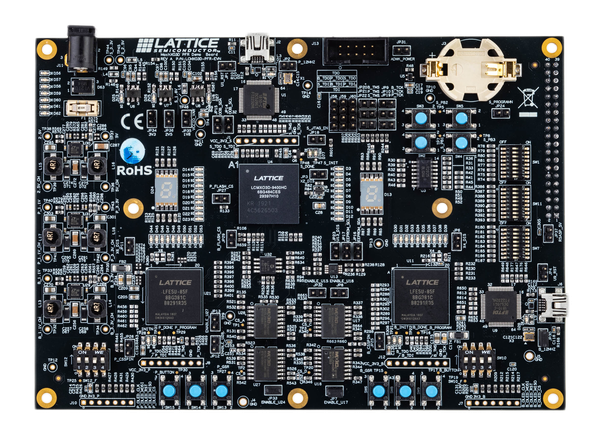

Lattice Semiconductor LCMXO3D-PFR-EVN Sentry Demo Board for MachXO3D is a single-board, system-level demo environment for the Lattice PFR system security solution. The MachXO3D Sentry Demo Board includes the MachXO3D LCMXO3D-9400HC-6BG484C CPLD and the ECP5 LFE5U-85F-8BG381C FPGA.
The Lattice Sentry Demo Board for MachXO3D demonstrates the Lattice PFR system security capability on a hardware platform controlled through a dedicated user interface on a PC workstation. The MachXO3D device authenticates the boot code of ECP5 (BMC) and ECP5 (PCH).
Features
- Lattice Sentry Solutions Stack PFR demo support
- Lattice Sentry system-level behavior validation
- USB connection for device programming
- Two ECP5 FPGA devices on-board with 256M SPI/QSPI flash devices to simulate protected external devices
Kit Contents
- Lattice sentry demo board for MachXO3D
- QuickStart guide
- Power supply (12V)
- USB cable for programming
Associated Products
Lattice Semiconductor MachXO3D™ FPGAs
The next gen of low-density PLDs including enhanced security features and on-chip dual boot flash.
Additional Resources

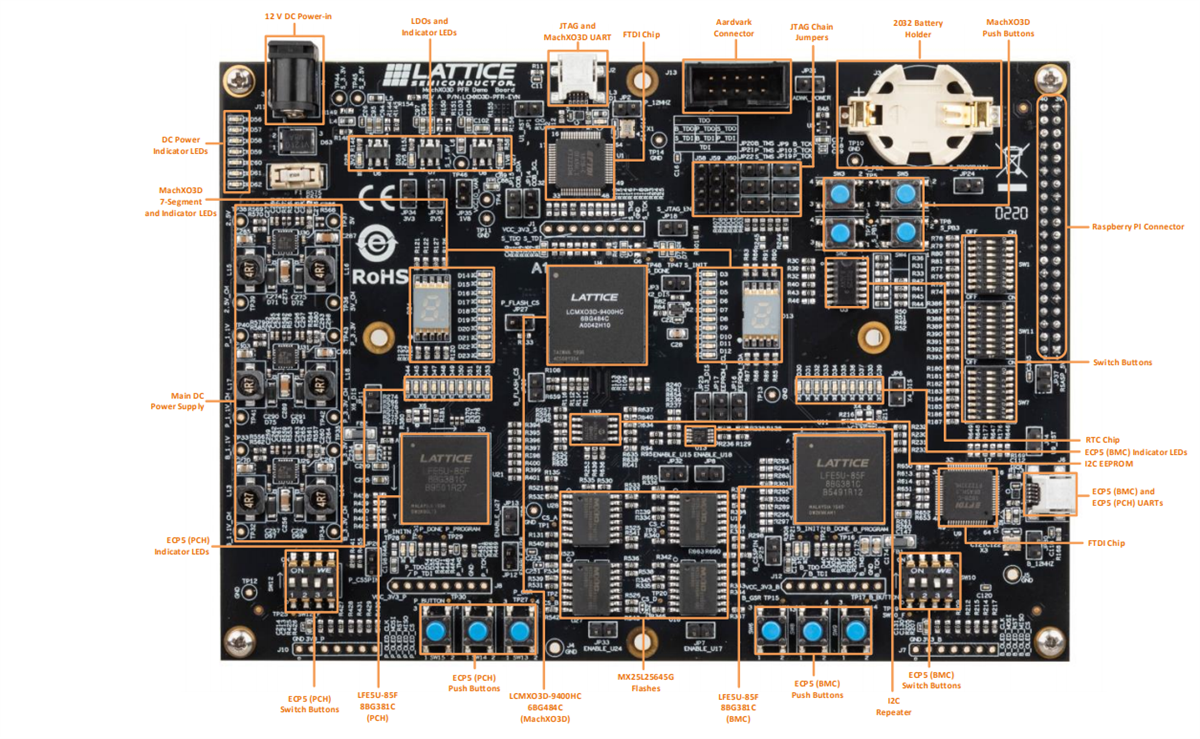

Front Layout

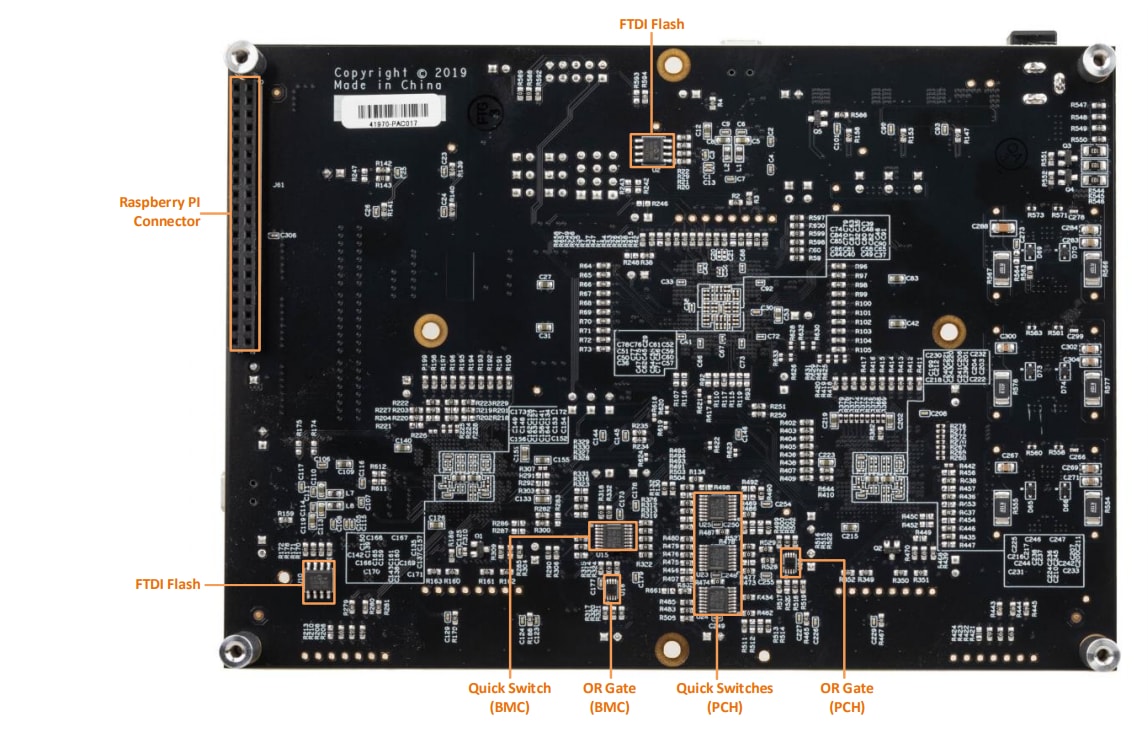

Back Layout

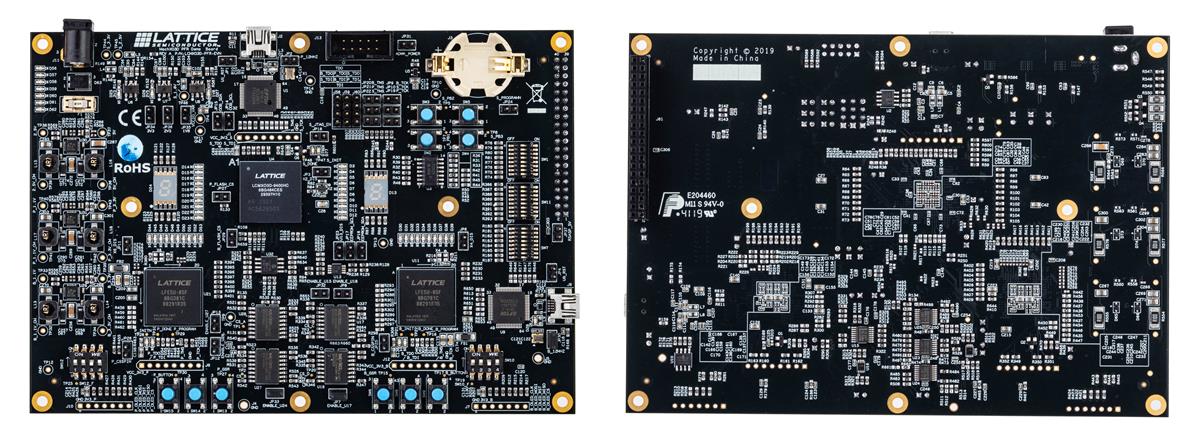

Overview
