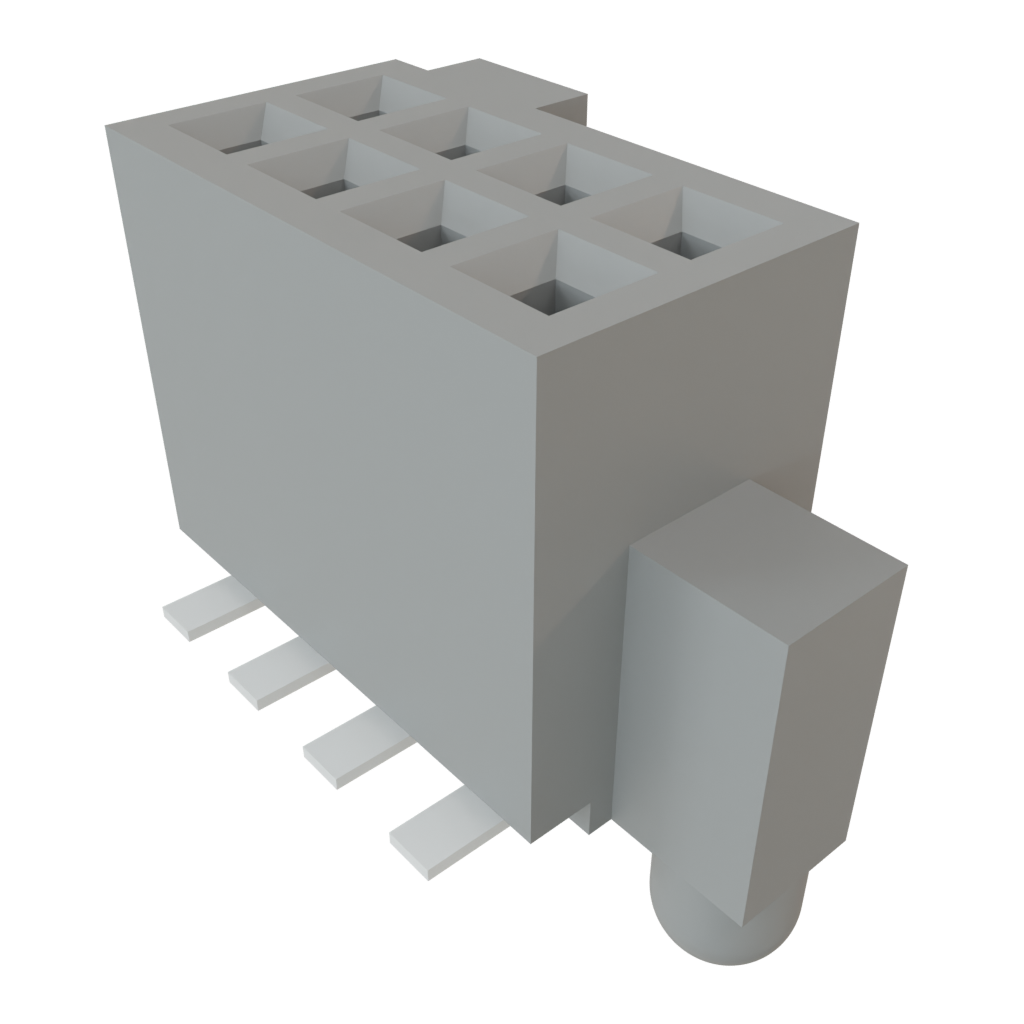

SFC-104-T2-L-D-A

Samtec
200-SFC104T2LDA
SFC-104-T2-L-D-A

製造商：

說明：
集管和線殼 .050 Tiger Eye Cost-Effective Reliable Socket Strip

規格書:
ECAD模型:
下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。
更多資訊
瞭解更多關於Samtec SFC-104-T2-L-D-A的資訊

庫存量: 38

庫存：
38 可立即送貨
工廠前置作業時間：
1 週 工廠預計生產時間數量大於所顯示的數量。
最少： 1   多個： 1
單價:
NT$-.--
總價:
NT$-.--
估計關稅:

Pricing (TWD)

數量 單價
總價
NT$53.72 NT$53.72
NT$43.18 NT$2,159.00
NT$36.04 NT$3,604.00
NT$31.62 NT$16,189.44
NT$26.86 NT$27,504.64
NT$24.14 NT$49,438.72
NT$20.40 NT$103,142.40
NT$17.34 NT$174,232.32

商品屬性 屬性值 選擇屬性
Samtec
產品類型: 集管和線殼
RoHS:
Headers
Socket
8 Position
1.27 mm (0.05 in)
2 Row
1.27 mm (0.05 in)
SMD/SMT
Solder
Straight
Socket (Female)
Gold
3.05 mm (0.12 in)
SFC
Tiger Eye
Board-to-Board
- 55 C
+ 125 C
Tube
品牌: Samtec
觸點材料: Phosphor Bronze
额定电流: 3.1 A
易燃性等級: UL 94 V-0
外殼顏色: Black
外殼材料: Liquid Crystal Polymer (LCP)
閉鎖類型: Unlatched
產品類型: Headers & Wire Housings
原廠包裝數量: 64
子類別: Headers & Wire Housings
額定電壓: 350 V
每件重量: 1.001 g
找到產品:
若要顯示類似商品，請選取至少一個核選方塊
至少選中以上一個核取方塊以顯示在此類別中類似的產品。
所選屬性: 0

規格書

Images

Models

Specification Sheets

Technical Resources

CNHTS:
8536901100
CAHTS:
8536690020
USHTS:
8536694040
JPHTS:
853669000
KRHTS:
8536691000
TARIC:
8536693000
MXHTS:
8536699999
BRHTS:
85366990
ECCN:
EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
