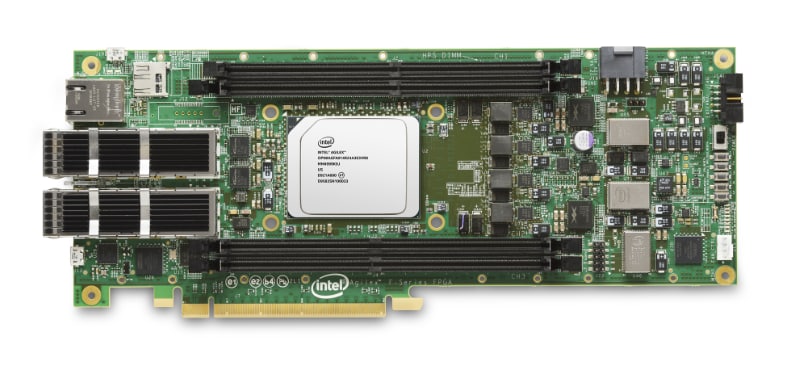

Altera Agilex® 7 FPGA F-Series Development Kit
Altera Agilex® 7 FPGA F-Series Development Kit is designed to develop and test PCIe 4.0 designs using the PCI-SIG-compliant development board. The development kit evaluates SoC features and performance using the Hard Processor System (HPS). The Altera / Intel Agilex® 7 FPGA F-Series FPGA Development Kit delivers a complete design environment that includes all the hardware and software within a PCI Express (PCIe) form factor.
Kit Contents
- Intel Agilex® 7 FPGA F-Series development board
- DDR4 DIMM module
- USB2.0 Micro cable
- Ethernet cable
- 240W power adapter and NA/EU/JP/UK cords
- ATX power converts cable - 24-pin to 6-pin

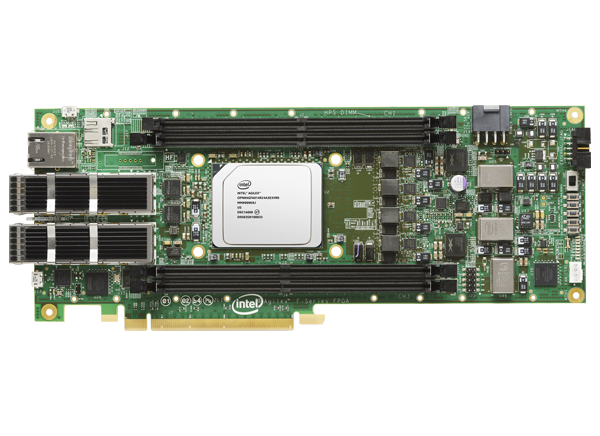

Board Layout

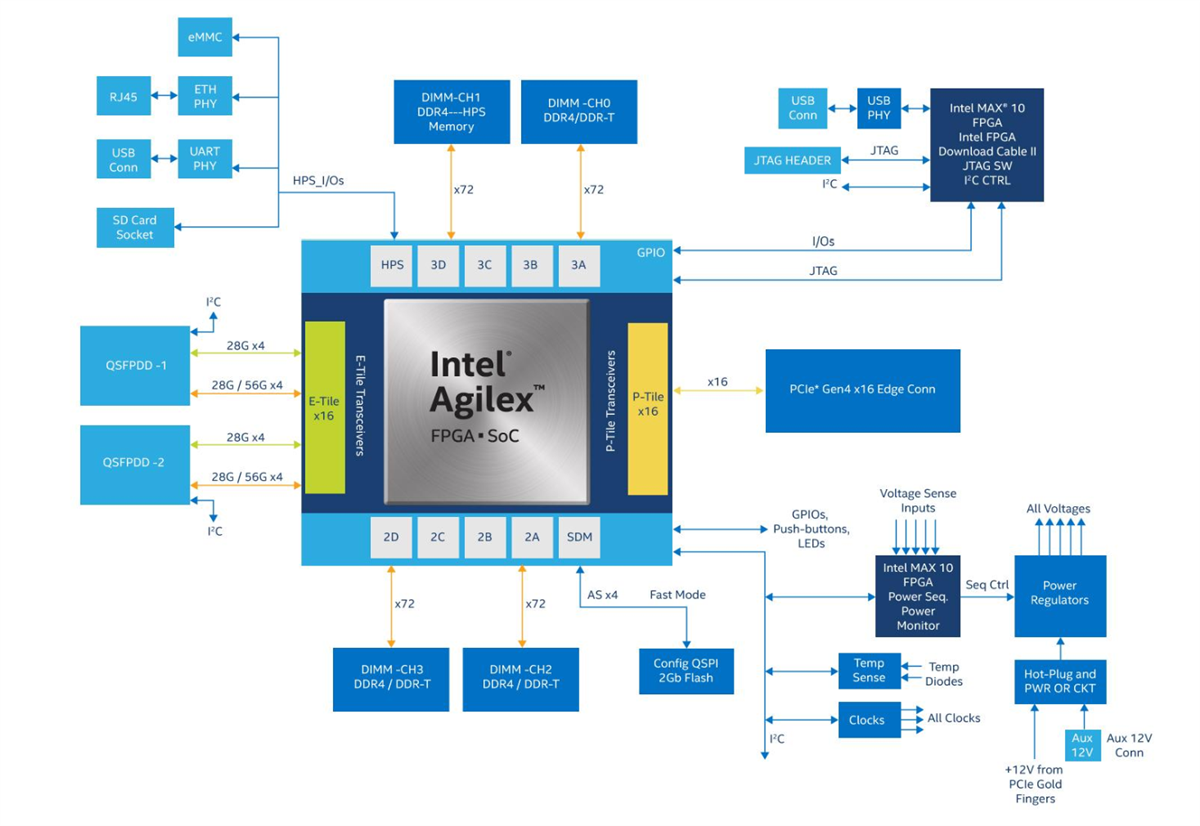

Block Diagram
