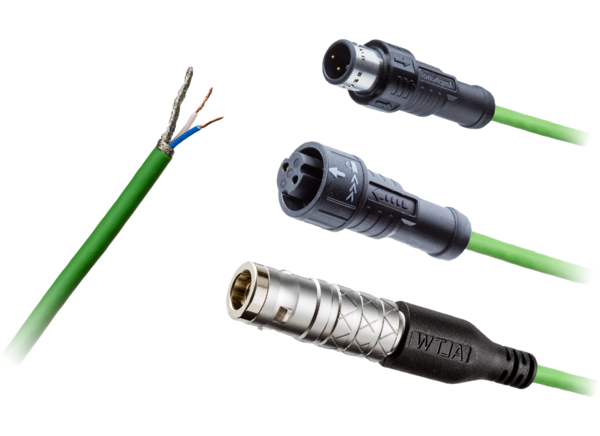

Amphenol LTW 3-3-3 Single Pair Ethernet (SPE) Cables

Amphenol LTW 33 Single Pair Ethernet (SPE) Cables feature mechanical interfaces with an IP67 rating (or higher) for industrial and ruggedized applications. These cables allow stable, uninterrupted connectivity with the ability to integrate data and power delivery with Power over Data Line (PoDL). The 33 SPE Cables simplify the process of connecting and powering edge devices by extending the range and bandwidth of a single twisted pair. The Amphenol LTW 33 Single Pair Ethernet (SPE) Cables are available with M12 (screw-threaded and push-pull), FLOS+ (push-pull), or X-Lok (push-lock) interconnects.


  • Proprietary SPE interface integrated into M12 (screw-threaded and push-pull), FLOS+ (push-pull), and X-Lok (push-lock) cables
  • Provides low power and simplifies networking on end-point sensors
  • Smaller and lighter than a standard 4-pairs Ethernet cable
  • Compatible with 802.3 10/100/1000 Base-T1 data rates
  • Supports PoDL
  • 20g vibration resistance from 10Hz to 2000Hz
  • Waterproof, IP67, IPX7, and IPX8 available
  • 100Mbit/s or 1GBit/s per twisted pair


  • 1m to 10m cable lengths
  • 4A or 5A current rating options
  • 300V voltage rating
  • 20AWG cable
