ams OSRAM OSRAM PointLED強化型光學功率LED
OSRAM PointLED®強化型光學功率LED為圓形的元件，可穿孔安裝，裝在PCB內部或PCB上方幾乎看不見，因此PointLED很適合空間受限的應用。
特點
- Package: white SMT package, colorless clear silicone resin
- Compact round 2mm diameter package
- 0.775 total height
- Wide variety of color options, including Amber, Blue, Cool White, Green, Orange, Red, Super Red, White, and Yellow
- UX:3 chip technology
- 120° viewing angle
- ESD: 2kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- -40°C to +100°C operating temperature range
- AEC-Q101 options available
應用
- Backlighting
- Replacement for miniature lamps
- Indicator lighting
- Signal and symbol illumination
- Automotive interior lighting
- Coupled to light guides
- Optical indicators
- Effects lighting
Related Products
ams OSRAM Power TOPLED® Enhanced Thinfilm LEDs
Powerful member of the TOPLED family that can handle a max forward current up to 70mA.
ams OSRAM TOPLED® Enhanced Optical Power LEDs
SMT LEDs with integrated reflector and feature wide viewing angle.
ams OSRAM SIDELED® Enhanced Thinfilm LEDs
Right angle SMT devices featuring an integrated reflector.
Related Solutions
ams OSRAM Outdoor & Industrial Lighting Solutions
Spectral Power Distribution quantification to support specialized outdoor lighting technologies.

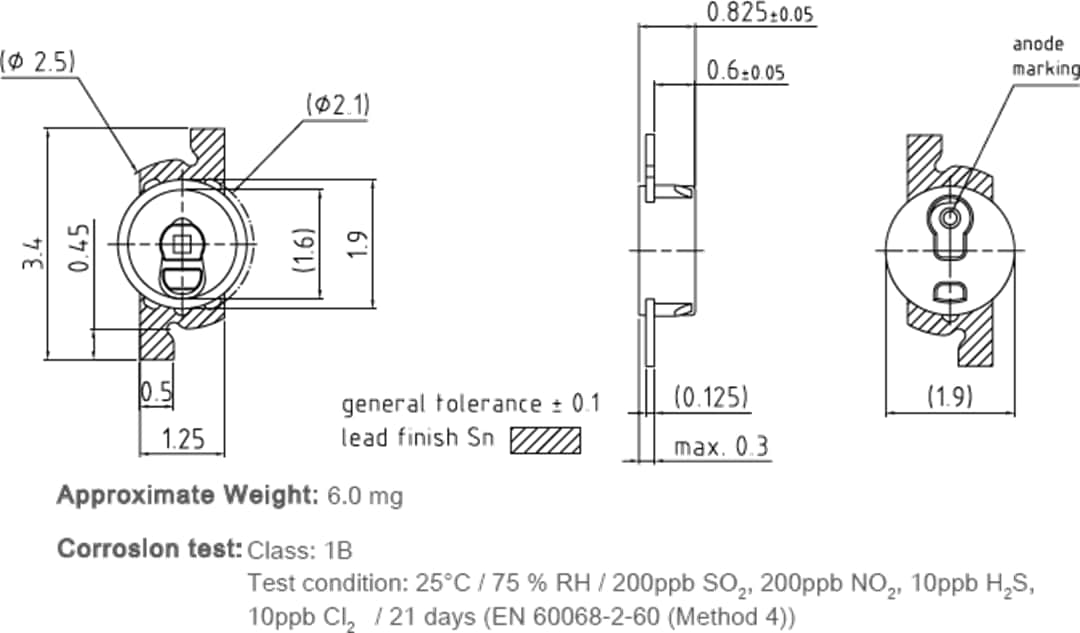

Package Outline
