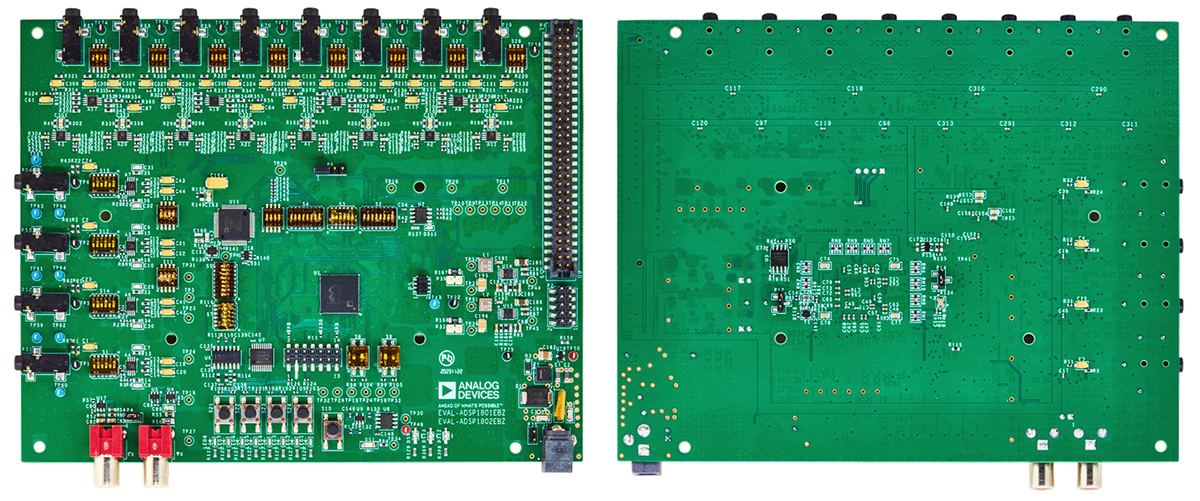

Analog Devices Inc. EVAL-ADSP1802 Evaluation Kit

Analog Devices EVAL-ADSP1802 Evaluation Kit supplies all digital applications interface (DAI) and digital peripheral interface (DPI) inputs/outputs using jumpers and switches. The ADI EVAL-ADSP1802 board is developed to be used with the CrossCore Embedded Studio (CCES) environment to test the capabilities of the ADSP1802 processor, which interfaces to the EVAL-ADSP1802EBZ through the ICE-1000/ICE-2000 emulators. An adapter or a 5V supply powers the EVAL-ADSP1802EBZ. Any of these supplies are regulated to the voltages required on the EVAL-ADSP1802EBZ.

The EVAL-ADSP1802EBZ incorporates four analog-to-digital converter (ADC) input channels and eight digital-to-analog converter (DAC) output channels. A 25MHz oscillator, crystal, or external CLK can supply the core clock.

Features

Analog Devices ADSP1802 SHARC processor
- Core performance up to 400MHz
- 88-lead lead frame chip scale (LFCSP) package
- 25MHz CLKIN oscillator/crystal
- On-chip memory
  - 5Mb L1 on-chip RAM
  - 8Mb L2 RAM
128Mb SPI flash memory
13 LEDs
Five push buttons
JTAG in-circuit emulator (ICE) 14-pin header

Analog audio interface
- Analog Devices AD1939 audio codec
- 8mm x 3.5mm jacks for 8 channels of stereo output
- 4mm x 3.5mm jacks for 4 channels of stereo input
- Supports all 8 DACs and 4 ADCs in TDM and I²S modes at 48kHz, 96kHz, and 192kHz sample rates
Digital audio interface (S/PDIF)
- Radio Corporation of America (RCA) phono jack output
- RCA phono jack input
Temperature monitor
UART

Applications

Audio and acoustic processing in the cabin, including active sound design, advanced chime, hands-free and voice preprocessing, active noise cancellation, and audio path management

Audio processing in consumer applications, including UI communication, professional audiovisual, hearables, and home theaters
Intelligent buildings with security and surveillance
