Analog Devices Inc. LTM8067與LTM8068 μModule® DC/DC轉換器

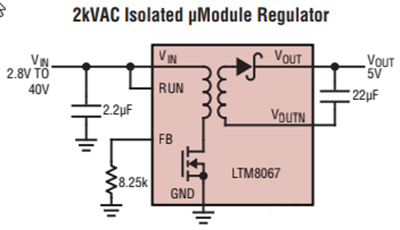

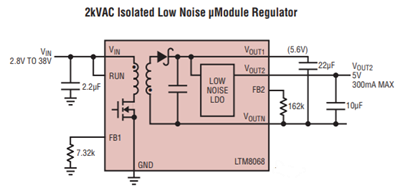

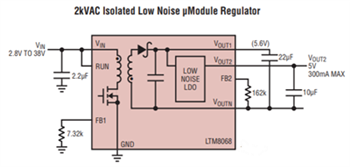

Linear Technology/Analog Devices LTM8067 and LTM8068 μModule® DC/DC Converters are 2kV AC isolated flyback power modules. Included in the package are the switching controller, power switches, transformer, LDO, and all support components. The converters operate over a 2.8-40V input voltage range and support a 2.5-18V output voltage range, set by a single resistor.

特點

2kV_AC isolated μModule converter
UL60950 recognized file 464570
2.8V to 40V input voltage range
Current mode control

User-configurable undervoltage lockout
Low profile (9mm × 11.25mm × 4.92mm)
BGA package

應用

Isolated IGBT gate drives
Industrial sensors

Industrial switches
Test and measurement equipment
