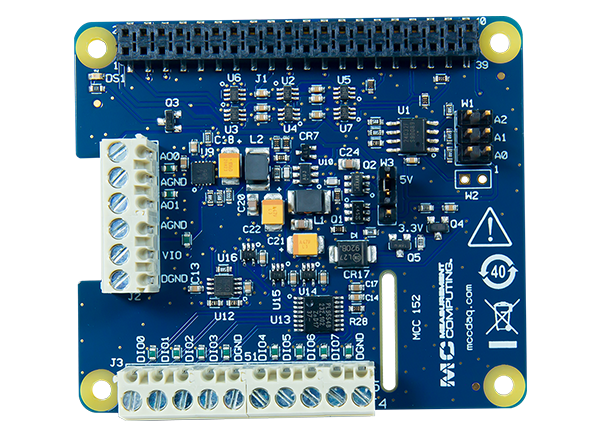

Digilent MCC 152 Voltage & DIO DAQ Hat for Raspberry Pi he MCC 152 Voltage Output and DIO HAT features two channels of analog voltage output and eight digital I/O for Raspberry Pi-based systems. The 12-bit voltage outputs feature a 0-5V range and are updated at up to 5kS/s. Up to eight MCC HATs can be stacked onto one Raspberry Pi. All DAQ HATs include C/C++® and Python™ examples and an open-source library. Comprehensive API and hardware documentation are also provided.
Two 12-bit simultaneous voltage outputs
5mA output drive, sourcing
0.8V/µs slew rate
Eight bidirectional digital bits
5V/3.3V operation; CMOS input thresholds
Programmable input polarity
Screw terminal connections
One MCC 152 DAQ HAT
2x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
Printed insert: Getting Started with MCC DAQ HATs
MCC packaging assembly/foam, etc.
Digilent MCC 118/128 Voltage DAQ HAT for Raspberry Pi
Feature eight channels of analog voltage measurement for Raspberry Pi data acquisition systems.
