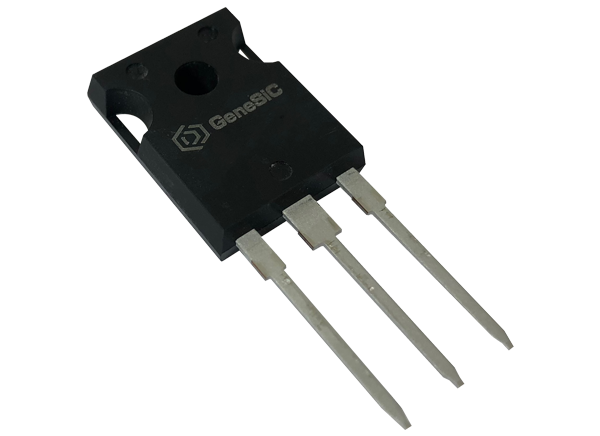

GeneSiC Semiconductor 1700V SiC Schottky MPS™ Diodes
GeneSiC Semiconductor 1700V SiC Schottky MPS™ Diodes feature a high-temperature operation with low power losses. With high system reliability and system efficiency, the 1700V SiC Diodes are easy to parallel without thermal runaway.
The GeneSiC 1700V SiC Schottky MPS Diodes offers a forward current range of 5A to 150A and a power dissipation range of 190W to 1625W. The 1700V SiC MPS Diodes are available in TO-263-7, TO-247-2, and SOT-227 packages. The 1700V SiC Diodes are ideal for solar inverters, switched-mode power supplies, motor drives, and high-frequency rectifier applications.
Features
- Low VF for high temperature operation
- Enhanced surge and avalanche robustness
- Superior figure of merit QC/IF
- Low thermal resistance
- Low reverse leakage current
- Temperature independent fast switching
- Positive temperature coefficient of VF
- Low VF for high temperature operation
Applications
- EV Fast chargers
- Solar inverters
- Anti-parallel / free-wheeling diode
- Motor drives
- High frequency rectifiers
- Switched Mode Power Supply (SMPS)
- Induction heating and welding
- Pulsed power
