ICE Components CT07 / CT08 Current Sense Transformers

ICE Components CT07 / CT08 Current Sense Transformers feature high current density, encapsulated construction, and a frequency range of 40Hz to 5kHz. These transformers are PCB mount and have a rating range up to 200A. ICE Components CT07 / CT08 Current Sense Transformers are ideal for switching power supplies and motor controls.

Features

  • PCB mount
  • High current density
  • Encapsulated construction

Specifications

  • CT07 transformers:
    • 1000 secondary turns
    • Up to 200A current range
    • -40°C to +105°C operating temperature range
    • 47Hz to 2.5kHz frequency range
  • CT08 transformers:
    • 1200 secondary turns
    • Up to 50A current range
    • -40°C to +130°C operating temperature range
    • 47Hz to 5kHz frequency range

Applications

  • Switching power supplies
  • Motor controls

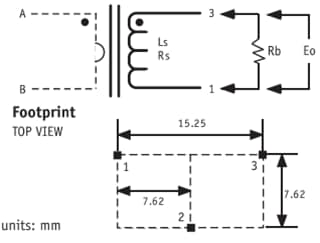

CT07 Transformers Schematic

Schematic - ICE Components CT07 / CT08 Current Sense Transformers

CT08 Transformers Schematic

Schematic - ICE Components CT07 / CT08 Current Sense Transformers

Associated Product

ICE Components Current Sense Transformers

Compact package for a small footprint, SMT through-hole mounting styles, and variety of turn ratios.

Learn More關於ICE Components Current Sense Transformers View Products與ICE Components Current Sense Transformers相關
View Results ( 2 ) Page
零件編號 規格書 說明 感應係數 额定电流 匝數比 次級線圈電阻 頻率範圍 電壓時間 - Et
CT07-1000 CT07-1000 規格書 電路板黏著式電流互感器 Current Sense Transformer 8 mH 200 A 1:1000 26 Ohms 47 Hz to 2.5 kHz 7.4 kV us
CT08-1200 CT08-1200 規格書 電路板黏著式電流互感器 Current Sense Transformer 10 mH 50 A 1:1200 40 Ohms 4.7 kHz 3.7 kV us
