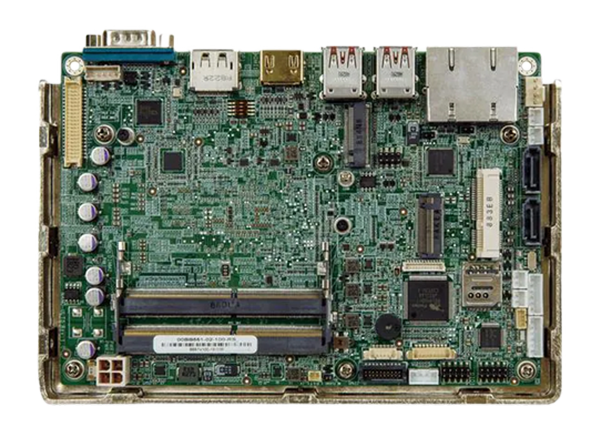

IEI Technology NANO-ULT5 Single Board Computer

IEI Technology NANO-ULT5 Single Board Computer (SBC) is based on Intel® Whiskey Lake-U 15W SoC. This SBC supports Intel 14nm 8th Generation Mobile Core™ i7-8665UE (15W) on-board processor (ULT) with HDMI/LVDS/DP, dual PCIe GbE, USB 3.1 Gen 2, and PCIe Mini. Additionally, this board accommodates M.2 A and M Key, SATA 6Gb/s, COM, SPI TPM, audio, and RoHS compliance. The design concept for NANO-ULT5 is to provide multiple expansions for diverse applications and make it an easy and better solution for users. The NANO-ULT5 SBC is equipped with Intel® HD Graphics Gen9 that features 16 execution units, 4K codec decode, and allows to display videos and images in stunning 4K resolution. Typical applications include panel PCs, factory monitors, hospital monitoring systems, self-service ordering machines, small-size embedded systems, point-of-sale systems, kiosks, and digital signage.

Features

  • EPIC SBC supports Intel® 8th Generation ULT processor
  • Triple independent display support
  • 12V DC input design
  • Support auto flow control over RS-485
  • M.2 slot with A key, M.2 M Key PCIe Mini slot with SIM holder
  • COM, USB 3.2 Gen 2, SATA 6Gb/s, eMMC 5.1, and audio support
  • -20°C to 60°C support temperature operation

Specifications

  • SoC:
    • Intel® Core™ i5-8365UE (1.6 GHz, Quad-Core, 6MB cache, TDP=15W)
  • BIOS:
    • AMI UEFI BIOS
  • Memory:
    • Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs supports up to 32GB
  • Graphics engine:
    • Intel® HD Graphics Gen9 Low Power; 16 execution units
    • 4K Codec decode
  • Display output:
    • Triple independent displays
    • 1 x HDMI up to 3840 x 2160 @60Hz
    • 1 x DP up to 3840 x 2160 @60Hz
    • 1 x Internal LVDS up to 1920x1200@60Hz
  • Ethernet:
    • 1 x PCIe GbE LAN Intel® i211 controller
    • 1 x PCIe GbE LAN Intel® i219 controller
  • Embedded controller:
    • iWDD IT8587VG
  • External I/O interface
    • 4 x USB 3.2 Gen 2
    • 1 x RS-232
  • Internal I/O interface:
    • 1 x 32 GB eMMC 5.1 (optional)
    • 1 x TPM (2x10 pin, p=0.5)
    • 1 x RS-422/485 (1x4 pin, P=2.0) (Support auto flow control over RS-485)
    • 1 x RS-232 (1x9 pin, P=1.25)
    • 2 x SATA 6G/s with 5V SATA power connector
    • 2 x USB 2.0 (2x4 pin, P=2.0)
  • SMBus/I²C:
    • 1 x 4-pin connector (1x4)
  • Audio:
    • Realtek ALC888S HD Audio codec
    • 1 x Analog audio (2x5 pin)
  • Front panel:
    • 1 x Power LED and HDD LED (1x6 pin)
    • 1 x Power button (1x2 pin)
    • 1 x Reset button (1x2 pin)
  • LAN LED:
    • 2 x LAN LED (1x2 pin)
  • Expansion:
    • 1 x M.2 slot with 2230 A key 1 x Full-size PCIe Mini slot
    • 1 x M.2 slot with 2280 M key 1 x SIM card
  • Digital I/O:
    • 1 x 8-bit digital I/O (2x5 pin)

Kit Contents

  • 1 x NANO-ULT5 SBC with heatsink
  • 1 x Power cable
  • 1 x Audio cable
  • 2 x RS-232 cable
  • 1 x SATA with power cable kit
  • 1 x Quick Installation Guide (QIG)

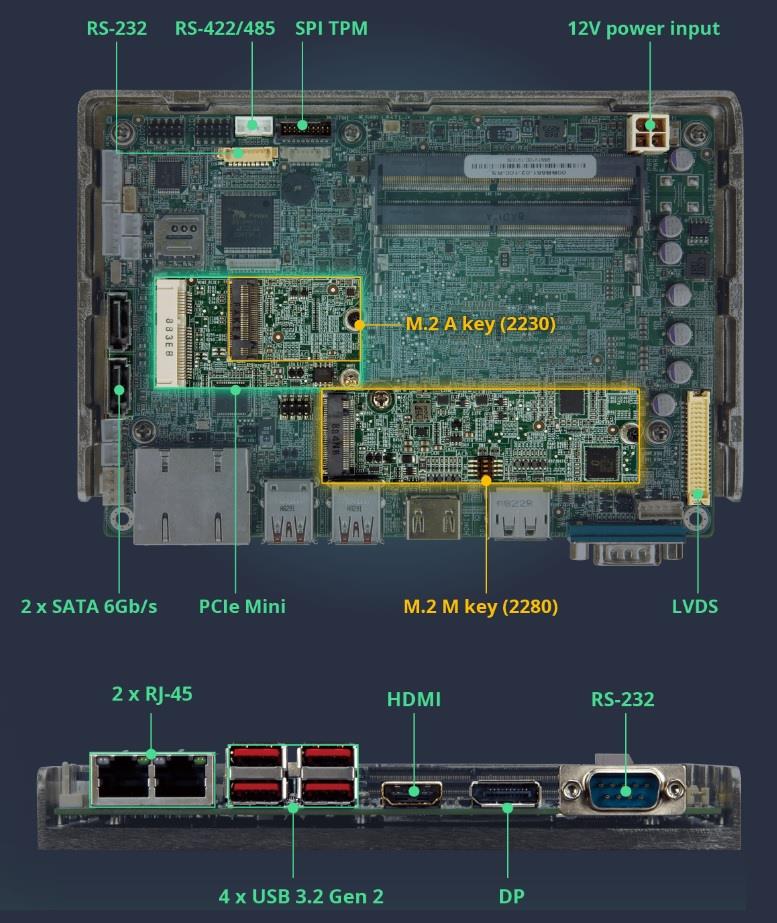

SBC Overview

Infographic - IEI Technology NANO-ULT5 Single Board Computer
