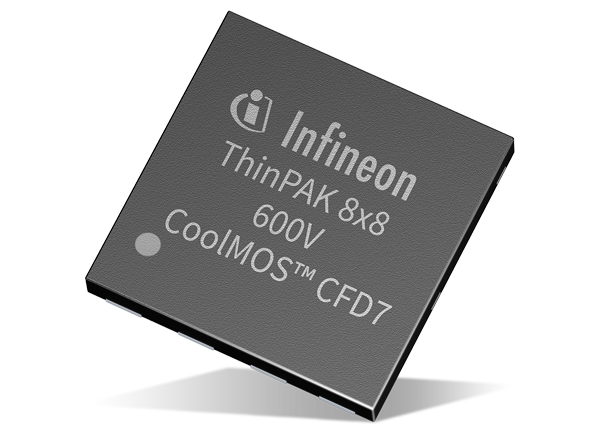

Infineon Technologies CFD7 CoolMOS™ MOSFETs
Infineon Technologies CFD7 CoolMOS™ MOSFETs are ideal for resonant high power topologies and feature high voltage superjunction MOSFET technology. The MOSFETs have an integrated fast body diode and completes the CoolMOS 7 series. Typical high power switch-mode power supply (SMPS) applications include server, telecom, and EV charging stations.
Features
- Ultrafast body diode
- Best-in-class reverse recovery charge
- Improved reverse diode dv/dt and diF/dt ruggedness
- Lowest FOM RDS(on)*Qg and EOSS
- Leading RDS(on)/package combinations
- Leading hard commutation ruggedness
- High reliability for resonant topologies
- High efficiency in target applications
- Enabling increased power density solutions
Applications
- Server
- Telecom
- EV charging
- SMPS
- PC power

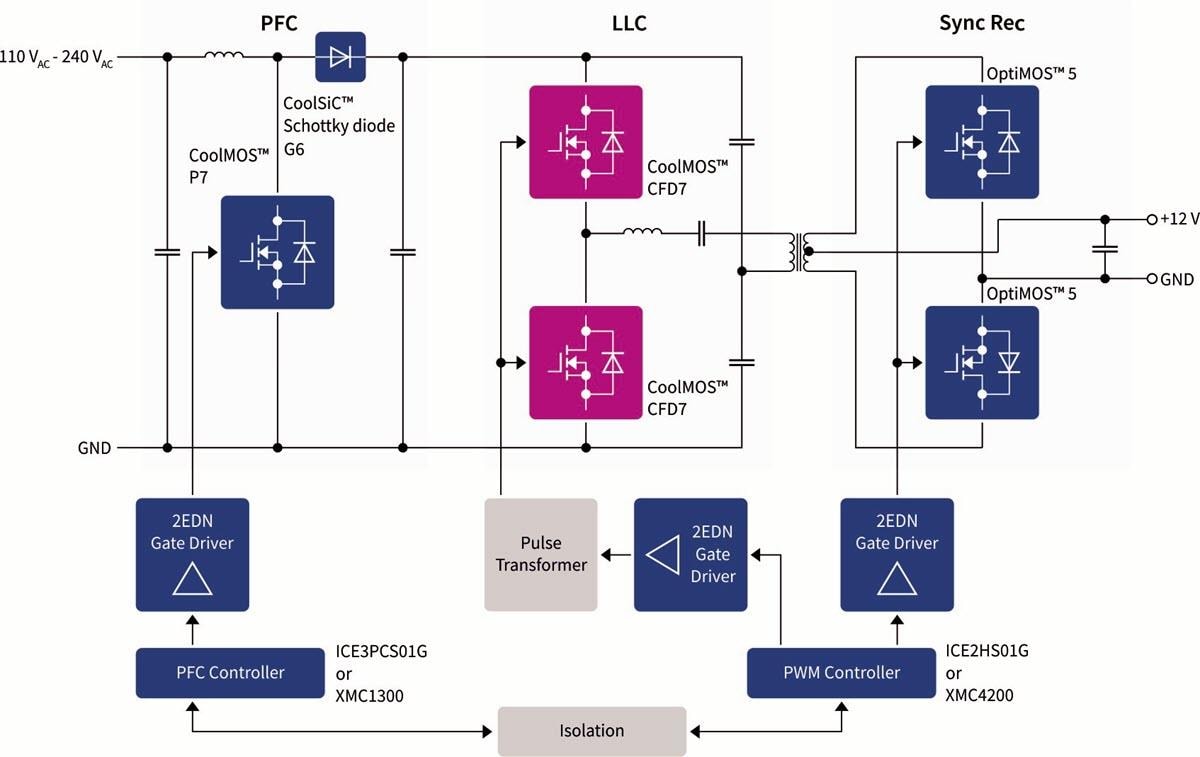

Block Diagram
Development Tools
Infineon Technologies EVAL_3K3W_TP_PFC_CC CoolMOS™ CCM Totem Pole PFC
Bridgeless totem pole PFM enabled by CoolMOS™ power MOSFETs and an XMC™ Microcontroller.
Infineon Technologies EVAL_2KW_ZVS_FB_CFD7 Evaluation Board
A platform for the ZVS DC-DC converter for telecom rectifiers.
Infineon Technologies EVAL_3K3W_BIDI_PSFB評估板
3300W雙向DC-DC轉換器的完整解決方案。
Infineon Technologies 1400W PSFB SMD Solution
Offers a complete solution with the 600V CoolMOS™ CFD7 Super-Junction MOSFET and XMC™ MCU.
Infineon Technologies 3kW 50V Server & Data Center PSU Reference Design
Complete power supply reference design targeting the Open Compute V3 rectifier specifications.
Infineon Technologies EVAL_1K6W_PSU_CFD7_QD 1.6kW Titanium PSU
A complete system solution for a 1600W server PSU that achieves the 80Plus® Titanium® standard.
