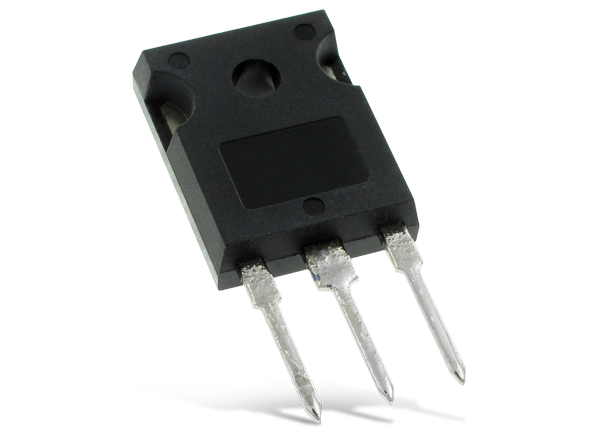

IXYS X3-Class HiPerFET™功率MOSFET
IXYS X3-Class HiPerFET™功率MOSFET是具備N通道強化模式的突崩等級快速固有二極體。這些MOSFET擁有低RDS(ON)、低閘極電荷 (QG) 和高功率密度等特性。IXYS X3-Class HiPerFET™ 200V-300V功率MOSFET可消除高速開關過程中的剩餘能量，以避免裝置故障。裝置的典型應用包括DC-DC轉換器、電源供應器、機器人、伺服控制和輕型電動車的電池充電器。
特點
- 高功率密度
- 容易安裝
- 低RDS(ON)和QG
- 溫度範圍：-55°C至150°C
- 20Vgs和2.5Vgs(th)
- 突崩能力
- dv/dt耐用性
- Si技術
- 低封裝電感
- 快速軟恢復內接二極體
- 國際標準封裝
應用
- 輕型電動車的電池充電器
- 開關同步整流
- 電源供應器
- 馬達控制
- DC-DC轉換器
- 不斷電系統
- 電動堆高機
- Class-D音訊放大器
- 電信系統
- 機器人與伺服控制
