Lattice Semiconductor Sentry Demo Board
Lattice Semiconductor Sentry Demo Board for Mach-NX is a 384-bit cryptography demonstration and test platform that is a NIST SP 800-193-compliant PFR solution on a single board. The Sentry Demo Board implements the Mach-NX as a Platform Root of Trust and two Lattice ECP5 FPGAs, which act as PFR-protected ICs in the system.
The Lattice Semiconductor Sentry Demo Board is pre-configured to detect, protect, and recover system firmware. Developers can test authentication of the protected ICs firmware using a 384-bit key strength before boot up, using the Lattice Sentry Root of Trust Solution for Mach-NX. The platform detects and blocks illegal SPI and SPI flash operations, which can be controlled and monitored using a dedicated user interface on a PC workstation. Additionally, the design can automatically replace the Mach-NX's damaged boot images and protected external devices with known good versions.
Features
- Mach-NX FPGA - LFMNX-50FBG484C
- Pre-configured to detect, protect, and recover system firmware
- Power Supply (12V)
- Lattice Sentry Solutions Stack PFR demo support
- Lattice Sentry system-level behavior validation
- USB connection for device programming
- Two ECP5 FPGA devices on-board with 256M SPI/QSPI flash devices to simulate protected external devices
Kit Contents
- Lattice Sentry Demo Board for Mach-NX
- Quick Start Guide
- Power Supply (12V)
- USB cable for programming
Associated Products
Lattice Semiconductor Nexus Platform
Enables low power, high reliability, and high-performance design.
Lattice Semiconductor CrossLink-NX™ FPGAs
Built on the 28nm FD-SOI Lattice Nexus platform.
Associated Dev Tools
Lattice Semiconductor CrossLink-NX™ Evaluation Board
Demonstration and prototyping platform based on the CrossLink-NX Field Programmable Gate Array.
Lattice Semiconductor CrossLink-NX™ VIP Sensor Input Board
Enables designers to experiment with the embedded vision features of the CrossLink-NX FPGA.
Additional Resources

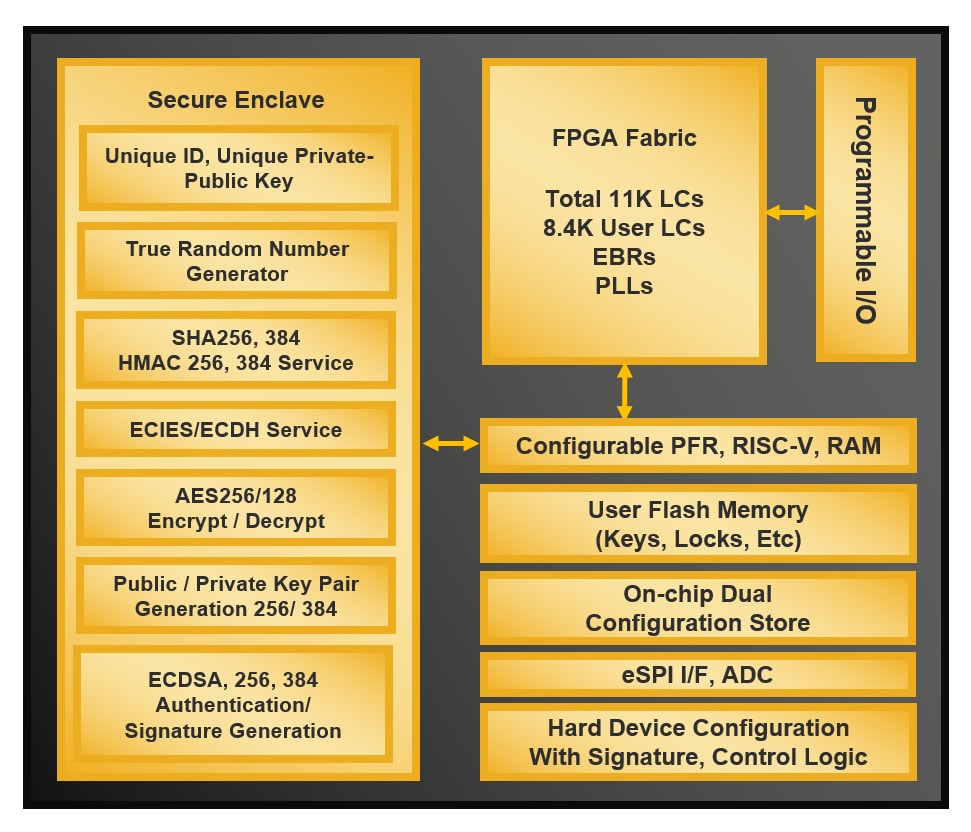

Block Diagram
