Luminus Devices SST-20-White Specialty LEDs

Luminus Devices SST-20-White Specialty LEDs are high brightness cool white LEDs with maximum output above 900lm. The SST-20-W LEDs feature high thermal conductivity package, electrically isolated thermal path, and 120° viewing angle. These white LEDs come with a compact monolithic emitter ideal for directional lighting applications with high uniformity. Luminus Devices SST-20-White Specialty LEDs are available in color temperatures ranging from 4000K to 6500K with CRI (typical) color points of up to >90. Applications include horticulture grow lights, automotive light bars, spotlight accessories, headlights, bicycle lights, flashlights, and portable lighting.

Features

  • High brightness cool white LED with maximum output above 900lm
  • 4000K to 6500K with up to >90 CRI (typical) color points
  • Compact monolithic emitter ideal for directional lighting applications with high uniformity
  • 3A maximum drive current
  • Available with two industry-standard soldering footprint configurations
  • High thermal conductivity package - junction thermal resistance of only 1.6°C/W
  • -40°C to +80°C or +100°C operating temperature range
  • Available with 120° viewing angle
  • 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001
  • Electrically isolated thermal path
  • RoHS and REACH compliant

Applications

  • SST-20-WxS
    • Horticulture grow lights
    • Automotive light bars, spotlight accessories, and headlights
    • Bicycle lights
    • Flashlights
    • Portable lighting
  • SST-20-WE
    • Roadway and street lighting
    • Sports field lighting
    • Outdoor area lighting
    • Landscape lighting
    • Garage and canopy lights
    • High/low bay industrial lighting
    • Automotive auxiliary lights
    • LED work lights
    • Portable lights
  • SST-20-WF
    • Roadway and street lighting
    • Sports field lighting
    • Outdoor area lighting
    • Landscape lighting
    • Garage and canopy lights
    • High/low bay industrial lighting
    • Miniature recessed lights
    • Wall washer
    • Track light
    • Spotlight
  • SST-20-WG
    • Miniature recessed lights
    • Landscape lighting
    • Portable lighting
    • Stage and studio lighting

Typical Relative Radiant Power (%)

Performance Graph - Luminus Devices SST-20-White Specialty LEDs

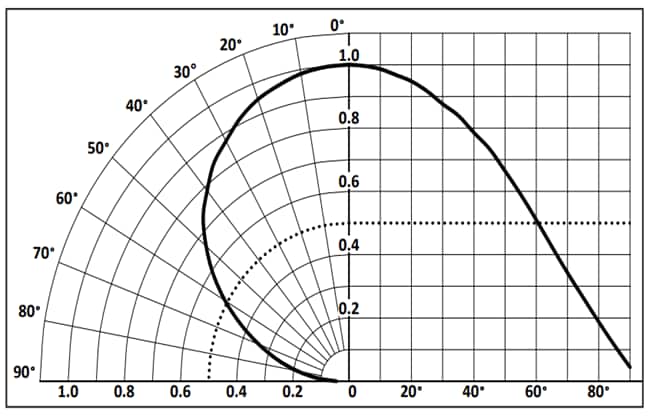

Typical Angular Pattern of Radiant Power Types A120 and B120

Performance Graph - Luminus Devices SST-20-White Specialty LEDs
