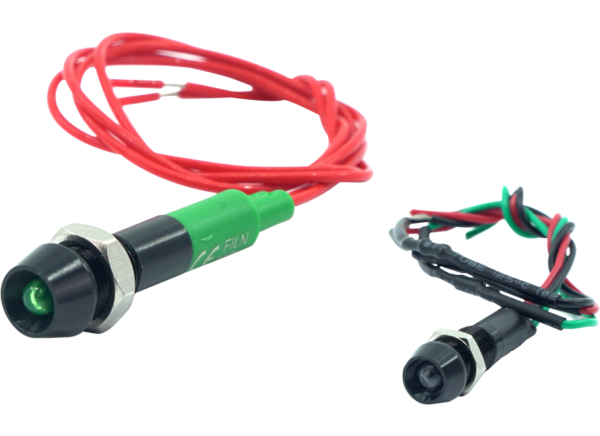

Mallory Sonalert FL1A Panel Mount Indicator LEDs

Mallory Sonalert FL1A Panel Mount Indicator LEDs are state-of-art LEDs with wire or screw termination style. These LEDs are available in red, green, blue, yellow, and white colors. The FL1A LEDs feature a 2V to 220V rated voltage range, 6mm, 8mm, and 12m panel mount sizes, 20mA maximum current, IP50/IP65 body styles, and -20°C to 85°C temperature range. These LEDs also feature a black Zinc Aluminum Alloy, PA66, and Polycarbonate housing material.

Features

  • Available in red, green, blue, yellow, and white colors
  • 6mm, 8mm, and 12m panel mount sizes
  • -20°C to 85°C operating temperature range
  • 20mA maximum current
  • 2V to 220V rated voltage range
  • Up to 70,000 hours of LED life
  • Zinc Aluminum Alloy, PA66, and Polycarbonate housing material
  • RoHS compliant

Specifications

  • FL1A-12FW:
    • 180° viewing angle
    • Up to 622nm dominant wavelength
    • 32ft-lbs (44Nm) maximum nut torque
    • 60,000 hours of LED life
  • FL1A-8SJ and FL1A-8SW:
    • 13ft-lbs (18Nm)
    • 180° viewing angle
    • Up to 622nm dominant wavelength
    • 60,000 hours of LED life
  • FL1A-8FW:
    • 70,000 hours of LED life
    • 180° viewing angle
    • Up to 622nm dominant wavelength
    • 13ft-lbs (18Nm)
  • FL1A-6FW, FL1A-6CW, and FL1A-6SW:
    • Up to 622nm dominant wavelength
    • 60,000 hours of LED life
    • 5.9ft-lbs (8Nm) maximum nut torque
    • Up to 60° viewing angle
  • FL1A-8FW-D/FL1A-8CW-D:
    • 13ft-lbs (18Nm) maximum nut torque
    • 50,000 hours of LED life
    • 10° to 120° viewing angle
  • FL1A-8CW:
    • 13.3ft-lbs (18Nm)
    • 180° viewing angle
    • Up to 622nm dominant wavelength
    • 60,000 hours of LED life

Related LEDs

FL1P Panel Mount LEDs

Mallory Sonalert FL1P Panel Mount LEDs

Feature dome and round lens shape with 6mm to 22mm mounting hole sizes and variety of colors.

Learn More關於Mallory Sonalert FL1P Panel Mount LEDs View Products與Mallory Sonalert FL1P Panel Mount LEDs相關
FL1M Panel Mount LEDs

Mallory Sonalert FL1M Panel Mount LEDs

Feature 6mm, 8mm, and 12mm panel hole sizes, wire or screw termination types, and 20mA LED current.

Learn More關於Mallory Sonalert FL1M Panel Mount LEDs View Products與Mallory Sonalert FL1M Panel Mount LEDs相關
View Results ( 59 ) Page
零件編號 規格書 If - 順向電流 Vf - 順向電壓 波長/色溫 發光強度 透鏡形狀 發光二極管大小 鏡頭顏色/類型 IP額定值 視角
FL1A-8CW-1-D-ERG12V 20 mA 12 VAC/12 VDC 535 nm, 610 nm 100 mcd, 200 mcd Round 8 mm x 36 mm Green, Red IP65 120 deg
FL1A-8CW-1-D-ERG110V 20 mA 110 VAC/110 VDC 535 nm, 610 nm 100 mcd, 200 mcd Round 8 mm x 36 mm Green, Red IP65 120 deg
FL1A-8CW-1-D-ERG24V 20 mA 24 VAC/24 VDC 535 nm, 610 nm 100 mcd, 200 mcd Round 8 mm x 36 mm Green, Red IP65 120 deg
FL1A-12FW-1-G12V 20 mA 12 VAC/12 VDC 522 nm 8000 mcd Round 12 mm x 38.1 mm Green IP65 180 deg
FL1A-12FW-1-G24V 20 mA 24 VAC/24 VDC 522 nm 8000 mcd Round 12 mm x 38.1 mm Green IP65 180 deg
FL1A-6CW-1-G24V 20 mA 24 VAC/24 VDC 522 nm 8000 mcd Round 6 mm x 32 mm Green IP65 60 deg
FL1A-6FW-1-G24V 20 mA 24 VAC/24 VDC 522 nm 8000 mcd Round 6 mm x 29.7 mm Green IP65 60 deg
FL1A-8CW-1-R12V 20 mA 12 VAC/12 VDC 622 nm 1000 mcd Round 8 mm x 39 mm Red IP65 180 deg
FL1A-8CW-4-G12V 20 mA 12 VAC/12 VDC 522 nm 8000 mcd Round 8 mm x 39 mm Green IP65 180 deg
FL1A-8SJ-2-G12V 20 mA 12 VAC/12 VDC 522 nm 8000 mcd Round 8 mm x 28.2 mm Green IP65 180 deg
