NXP Semiconductors PF502x電源管理積體電路
NXP PF502x電源管理積體電路(PMIC)將多個高效能降壓穩壓器整合至單一裝置。PF502x PMIC可作為獨立的負載點穩壓器IC或較大PMIC的輔助晶片運作。
特點
- 3個或4個高效率降壓轉換器
- 看門狗計時器/監視器
- 監控電路符合ASIL B安全等級
- 單次可程式裝置組態
- 3.4MHz I2C通訊介面
- 40腳位QFN封裝，具備濕式側翼和外露焊盤設計
- 一個帶有負載開關選項的線性穩壓器(PF5020)
- RTC供電與鈕扣型電池充電器(PF5020)
應用
- 汽車資訊娛樂
- 高端消費與工業
影片

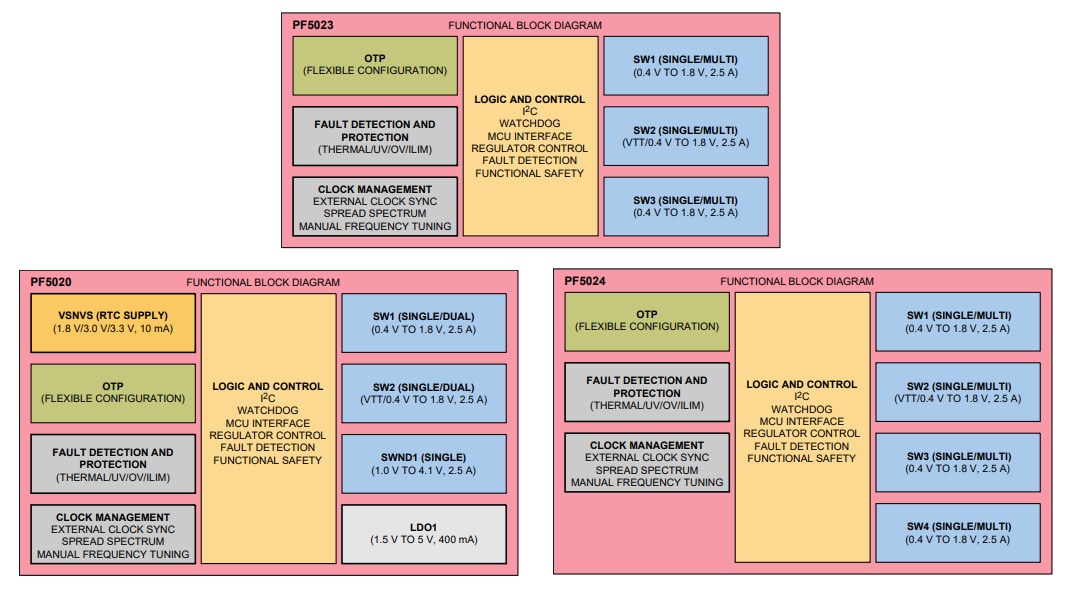

功能方塊圖
開發工具
NXP Semiconductors S32G Reference Design 2 (S32G-VNP-RDB2)
Highly-optimized evaluation board based on the S32G2 Vehicle Network Processor.
NXP Semiconductors KITPF502xSKTEVM Socket Board Kit
Integrates all hardware needed to fully evaluate the PF502x power management integrated circuits.
NXP Semiconductors DEMO-BYL1-EVB BYLink Multiprocessor Demo Board
Features a demonstrator design to illustrate the BYLink concept power management solution.
