NXP Semiconductors UJA116xA Mini HS-CAN Transceivers

NXP Semiconductors UJA116xA Mini HS-CAN Transceivers offer a highly integrated solution with an HS-CAN interface housed in a small, leadless HVSON14 package. The UJA116xA variants provide options including a watchdog, an optional external 5V sensor supply, and partial networking support.

The NXP UJA116xA Mini HS-CAN Transceivers contain an ISO11898-2:2016 and SAE J2284-1 to J2284-5 compliant HS-CAN transceiver. Additionally, the devices feature CAN FD active communication up to 5Mbit/s together with an integrated 5V low-dropout regulator supply (V1) for a microcontroller and other loads up to 100mA. The UJA116xA SBC can be operated in very low-current standby and sleep modes with bus and local wake-up capabilities.

Features

  • ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant HS-CAN including CAN FD active communication up to 5Mbit/s
  • Optional partial networking and CAN FD passive support
  • Autonomous bus biasing according to ISO 11898-6
  • Fully integrated 5V low-dropout regulator with 100mA output current capability
  • Optional protected 5V sensor supply variant for off-board usage
  • Standby and sleep mode with very low supply current
  • Watchdog with window, timeout and autonomous modes and microcontroller-independent clock source
  • Remote and local wake-up capability
  • Mode control via the serial peripheral interface (SPI bus)
  • Easy and secure customer programmable configuration of selected functions via non-volatile memory
  • Support for microcontroller RAM retention down to a battery voltage of 2V
  • Leadless HVSON14 package (3mm x 4.5mm) with improved automated optical inspection (AOI) capability and low thermal resistance
  • Hardware and software compatible with UJA116x product family
  • Qualified in accordance with the AEC-Q100 Rev-G standard

Applications

  • Sun roof control modules
  • Seat pretensioners
  • Gear shift control
  • Tire pressure monitoring
  • Window and door control
  • Steering control modules
  • HVAC climate control

Associated Boards

NXP Semiconductors UJA116xA Evaluation Boards

Designed to evaluate the UJA116xA features in various microcontroller IO interface environments.

Learn More關於NXP Semiconductors UJA116xA Evaluation Boards View Products與NXP Semiconductors UJA116xA Evaluation Boards相關

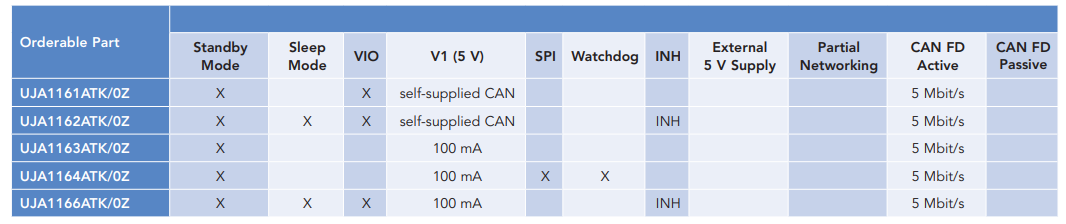

Variant Table

Chart - NXP Semiconductors UJA116xA Mini HS-CAN Transceivers

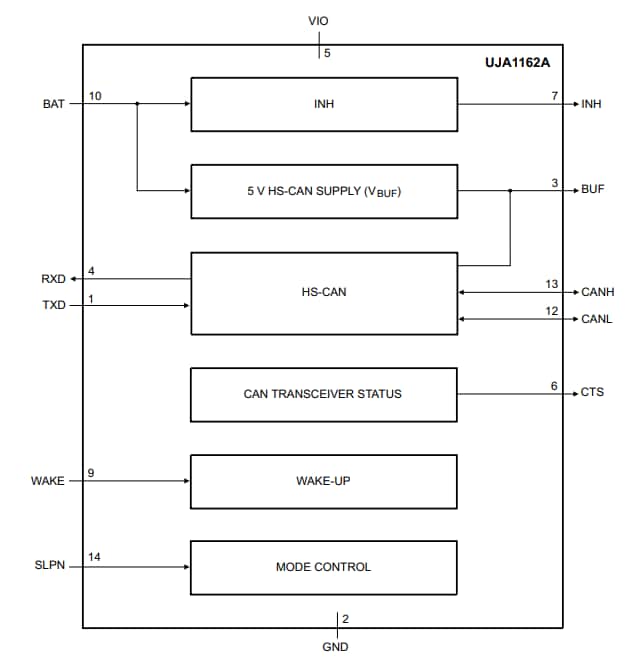

Block Diagrams

Block Diagram - NXP Semiconductors UJA116xA Mini HS-CAN Transceivers
Block Diagram - NXP Semiconductors UJA116xA Mini HS-CAN Transceivers
Block Diagram - NXP Semiconductors UJA116xA Mini HS-CAN Transceivers
Block Diagram - NXP Semiconductors UJA116xA Mini HS-CAN Transceivers
Block Diagram - NXP Semiconductors UJA116xA Mini HS-CAN Transceivers
View Results ( 11 ) Page
零件編號 規格書 說明
UJA1164ATK/0Z UJA1164ATK/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip with Standby mode & watchdog
UJA1162ATK/0Z UJA1162ATK/0Z 規格書 CAN總線接口IC Self-supplied high-speed CAN transceiver with Sleep mode
UJA1167ATK/0Z UJA1167ATK/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip with Standby/Sleep modes & watchdog
UJA1163ATK/0Z UJA1163ATK/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip with Standby mode
UJA1168ATK/0Z UJA1168ATK/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip for partial networking
UJA1161ATK/0Z UJA1161ATK/0Z 規格書 CAN總線接口IC Self-supplied high-speed CAN transceiver with Standby mode
UJA1166ATK/0Z UJA1166ATK/0Z 規格書 CAN總線接口IC Self-supplied high-speed CAN transceiver with Sleep mode
UJA1167ATK/X/0Z UJA1167ATK/X/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip with Standby/Sleep modes & watchdog
UJA1168ATK/F/0Z UJA1168ATK/F/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip for partial networking
UJA1168ATK/X/0Z UJA1168ATK/X/0Z 規格書 CAN總線接口IC Mini high-speed CAN system basis chip for partial networking
發佈日期: 2021-06-21 | 更新日期: 2022-03-11
