Renesas Electronics MicroClock 5L2503 Development Kit
Renesas Electronics MicroClock 5L2503 Development Kit supports the 5L2503 MicroClock family by providing a convenient method of verifying, configuring, and programming the 5L2503 MicroClock blank parts in the socket. The Timing Commander™ GUI communicates to the 5L2503 devices for configuration and frequency validation on the USB motherboard via an onboard USB interface.
Features
- Supports the 5L2503 MicroClock family
- Offers a convenient method of verifying, configuring and programming the 5L2503 MicroClock blank parts in the socket
- On-board USB interface
Supported Devices
Renesas Electronics 5X2503 & 5L2503 MicroClock™ Clock Generators
Consumes <2µA on a 32.768kHz clock; 3 independently-programmable LVCMOS outputs up to 125Mhz.

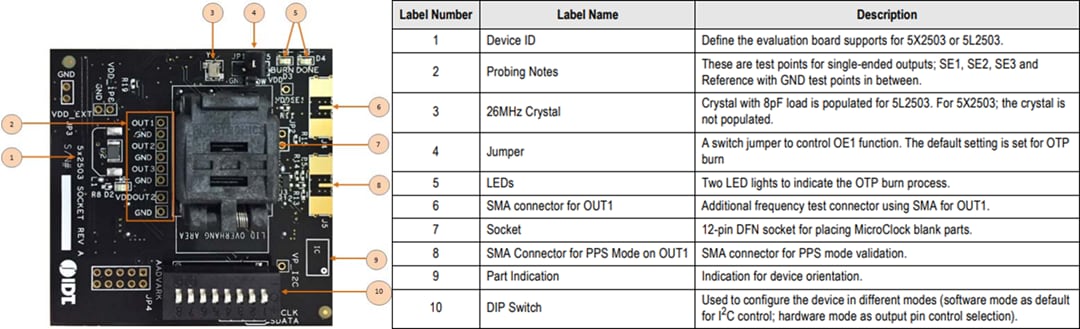

Board Layout
