Seeed Studio TF03-180 LiDAR Long Range Distance Sensor (180m)
Seeed Studio TF03-180 LiDAR Long Range Distance Sensor (180m) is an industrial-grade long-range distance sensor. The TF03-180 has a maximum detection range of up to 180m and an adjustable frame rate with a maximum of 1KHz. With an integrated compensating algorithm for outdoor glare and other interference, TF03-180 can work under a strong light environment, rain, fog, and snow conditions. It also has an aluminum alloy enclosure with IP67 water and dust resistance. Multiple built-in operating modes are included to change parameters and configurations to meet different applications.
Features
- Compact size (44mm x 43mm x 32mm (L x W x H))
- Long-range detection (up to 180m)
- Adjustable frame rate with a maximum of 1KHz
- Aluminum alloy enclosure with IP67 water and dust resistance for industrial applications
- Multiple configurable communication interfaces (UART/CAN)
- Multiple configurable baud rates
Applications
- Vehicle collision avoidance and safety warning systems
- Traffic flow statistics
- Camera trigger
- UAV assisted takeoff and landing

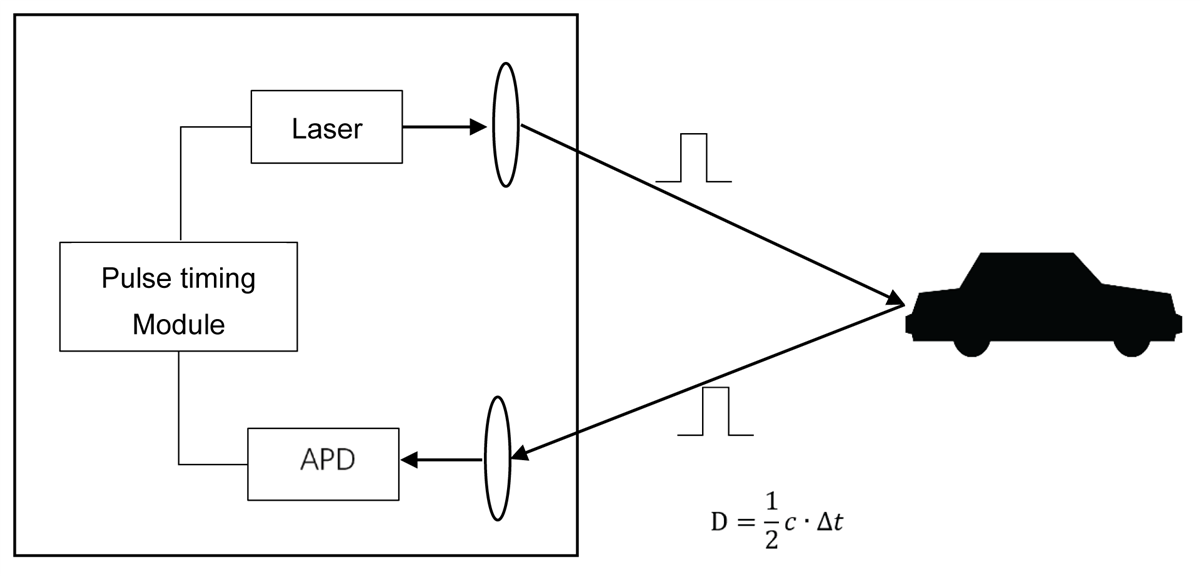

How It Works
Hardware Overview
