Kingston M.2 NVMe Solid State Drives (SSDs)
Kingston M.2 NVMe Solid State Drives (SSDs) are high-performance storage solutions built on the PCIe Gen 4x4 NVMe 1.4 interface, offering exceptional speed and reliability for a variety of applications. Available in capacities up to 2TB, these OM8SGP4 M.2 2280 form factor drives deliver sequential read speeds up to 7000MB/s and write speeds up to 6000MB/s, making the SSDs ideal for demanding workloads such as content creation, gaming, and enterprise client systems. Designed with advanced features like thermal throttling protection, end-to-end data path protection, and power loss protection, the Kingston OM8SGP4 series ensures data integrity and consistent performance even under intensive use. Low power consumption and a compact design make the OM8SGP4 SSDs well-suited for embedded systems and mobile computing platforms where efficiency and space are critical.
Features
- 256GB, 512GB, 1024GB, and 2048GB capacity options
- M.2 2280-S3-M form factor
- Kioxia BiCS8 TLC Flash IC
- PCIe Gen4 x4 interface
- Non-Volatile Memory Express protocol
- SMI2268XT2 controller
- Performance
- Sequential read
- 4500MB/s for 256GB
- 7000MB/s for 512GB, 1024GB, and 2048GB
- Sequential write
- 3000MB/s for 256GB
- 5500MB/s for 512GB
- 6500MB/s for 1024GB and 2048GB
- 4K random read (Q32T16)
- 350K IOPS for 256GB
- 650K IOPS for 512GB
- 1000K IOPS for 1024GB and 2048GB
- 4K random write (Q32T16)
- 650K IOPS for 256GB
- 700K IOPS for 512GB
- 800K IOPS for 1024GB
- 1000K IOPS for 2048GB
- Sequential read
- Thermal throttling protection
- End-to-end data path protection
- Power loss protection
- Power consumption
- Maximum read
- 3W for 256GB
- 4W for 512GB, 1024GB, and 2048GB
- Maximum write
- 3W for 256GB
- 4W for 512GB
- 4.5W for 1024GB and 2048GB
- 0.15W average consumption
- 3.5mW L1.2 substate
- Maximum read
- 3.3V ±5% input voltage
- ≤10-15 Uncorrectable Bit Error Rate (UBER)
- 2M hours Mean Time between Failure (MTBF)
- Dimensions
- 80.00mm ±0.15mm length
- 22.00mm ±0.15mm width
- 1.50mm maximum height
- 2.40mm maximum thickness
- 0°C to +70°C operating temperature range
- 3-year warranty
Applications
- Notebooks, desktops, and workstations where fast boot times, application responsiveness, and efficient multitasking are essential
- Embedded applications in industrial PCs, edge devices, and Internet of Things (IoT) systems
- Content creation that require fast data access and transfer speeds for video editing, 3D rendering, and large file manipulation
- Gaming systems that require high sequential read/write speeds and low latency
- Corporate and enterprise environments where consistent performance and data integrity are critical

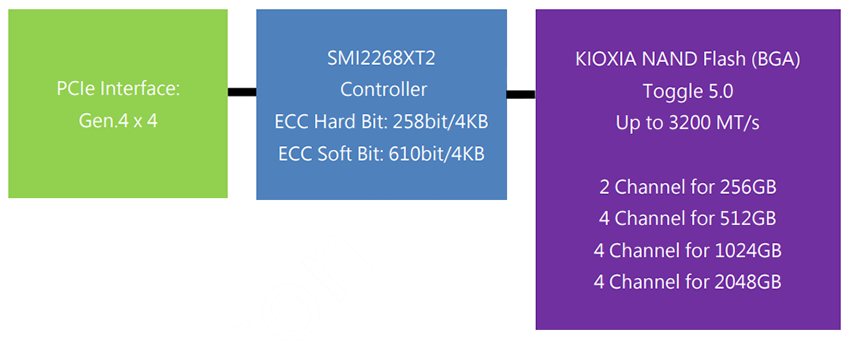

Block Diagram
