Texas Instruments TPS7H1111EVM Evaluation Module
Texas Instruments TPS7H1111EVM Evaluation Module is an engineering demonstration board designed for the space-enhanced TPS7H1111-SEP. The TPS7H1111-SEP is a radiation-tolerant, 1.5A, ultra-low noise, ultra-high PSRR RF LDO regulator ideal for space applications requiring low noise and high power-supply rejection ratio (PSRR). The TI TPS7H1111EVM evaluation module is configured with a default output resistor to regulate to a 1.8V VOUT, with a usable VIN range of (1.8V + VDO) to 7V with VBIAS range of (VOUT +1.6V to 14V).
Features
- 1.5A regulator
- Ultra-low noise
- High power-supply rejection ratio (PSRR)
Applications
- Satellite electrical power system (EPS)
- Power for high-speed and high-accuracy circuits
- Data converters: ADCs and DACs (analog-to-digital and digital-to-analog converters)
- VCOs (voltage-controlled oscillators)
- PLLs (phase-locked loops)
- SerDes (serializers and deserializes)
- Imaging sensors
- Accurate supply for FPGAs (field programmable gate arrays) and DSPs (digital signal processors)
- Radiation-hardened ultra-clean analog supply for space-constrained areas
Associated Evaluation Module
Texas Instruments TPS7H1111EVM-CVAL Regulator Evaluation Module
Engineering demonstration for the RHA TPS7H1111-SP, an ultra-low noise, high PSRR, LDO regulator.

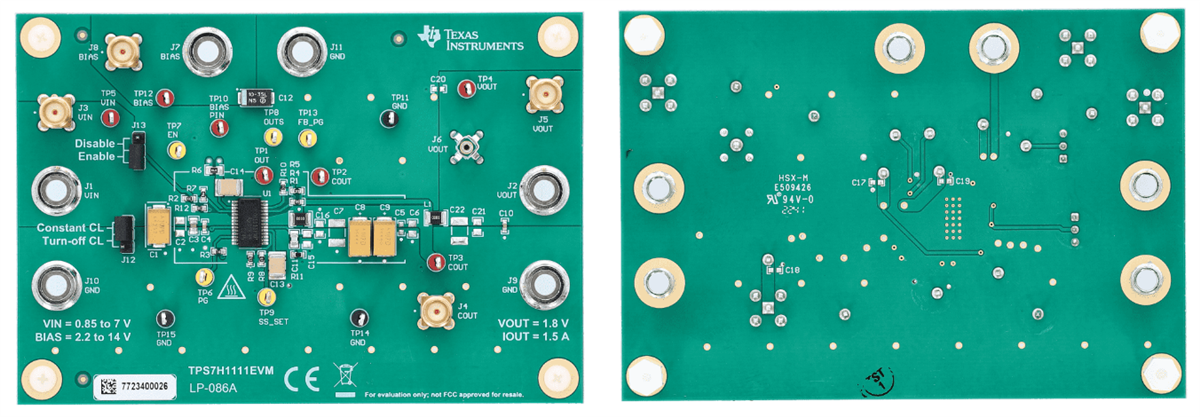

PCB Layout
