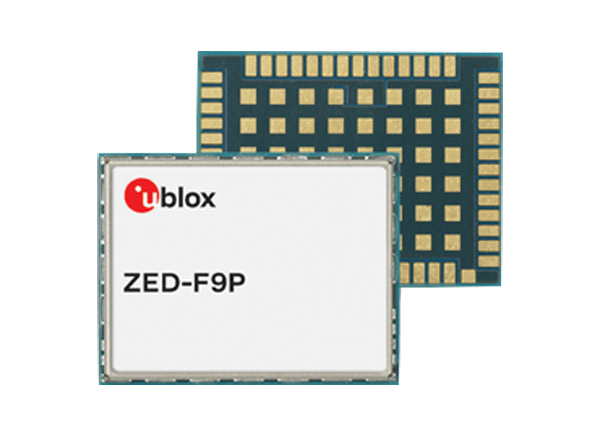

u-blox ZED-F9P GNSS Modules
u-blox ZED-F9P GNSS Modules feature integrated multi-band Real-Time kinematic (RTK) technology for centimeter-level accuracy. These modules include the F9 receiver platform that provides multiband GNSS for high-volume industrial applications. The ZED-F9P modules enable precise navigation and automation of moving machinery in industrial and consumer-grade products in a compact surface-mounted form factor. The ZED-F9P modules also include moving base support that allows both base and rover to move while computing a centimeter-level accurate position between them. These modules operate at a -0.5V to 3.6V power supply voltage range, 100mA output current, and 10dBm input power.
Features
- Concurrent reception of GPS, GLONASS, Galileo, and BeiDou
- Multi-band RTK with fast convergence times and reliable performance
- High update rate for highly dynamic applications
- Centimeter accuracy in a small and energy-efficient module
- Easy integration of RTK for fast time-to-market
Specifications
- -0.5V to 3.6V power supply voltage range
- 100mA output current
- 10dBm input power
- -40°C to 85°C operating and storage temperature range
Additional Resource
Related Products
SparkFun GPS-19984 RTK Facet
Designed for high precision geolocation and surveying.
u-blox C099-F9P 應用板
集成 ZED-F9P 模塊並包含 ODIN-W2 短程模塊以提供連接選項。
ArduSimple Real-Time Kinematic (RTK) Calibrated Surveyor Kit
Traditional Real-Time Kinematic (RTK) survey performance at affordable cost.
Related Modules
u-blox ZED-F9R GNSS Modules
Integrated F9 multi-band GNSS receiver features rapid convergence time within seconds.
u-blox ZED-F9T GNSS Modules
Incorporates F9 multi-band platform in a small surface-mount device with a 22mm x 17mm form factor.
Evaluation Tools
u-blox EVK-F9P-00評估套件
用於評估高精度定位產品性能的強大和多功能工具。

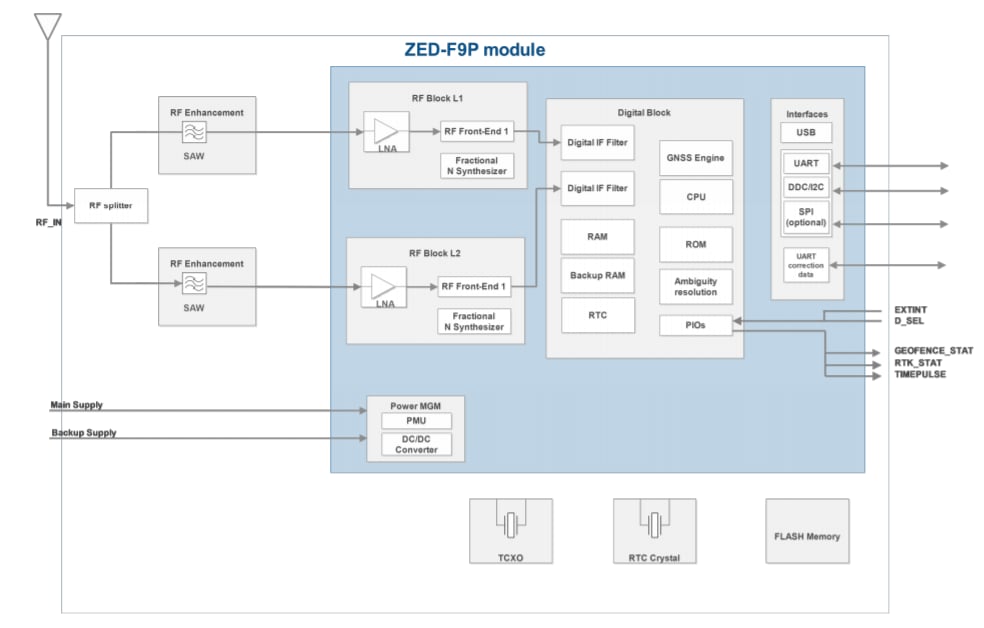

Block Diagram
